2026 Toyota Tundra 1794 Edition CrewMax 4-Wheel Drive
- VIN: 5TFMC5DB7TX143217
- Stock: TX22D236
(30) Photos
/
Basic Info
-
Exterior:Midnight Black Metallic
-
Drivetrain:4-Wheel Drive
-
Interior:Tan
-
Transmission:10-Speed Electronically Controlled automatic Transmission with intelligence (ECT-i) and sequential shift mode
-
Engine:i-FORCE MAX V6 Hybrid Engine
-
Fuel Type:Hybrid
-
Fuel Efficiency:19 CITY / 22 HWY
Vehicle Details
Exterior
- 20-in. machined-finish alloy wheels
- Front door handles with touch-sensor lock/unlock feature
- Premium LED headlights with chrome trim, LED Daytime Running Lights (DRL), sequential turn signals, auto on/off feature, and automatic leveling adjustment
- LED fog lights 35
- Premium LED taillights with sequential turn signals
- Chrome-accented mesh grille with chrome surround
- Rain-sensing washer-linked variable intermittent windshield wipers
- Heated power outside mirrors with turn signal and blind spot warning indicators, 11 and power-folding and reverse tilt-down features; auto anti-glare driver's-side mirror only
- 5.5-ft. Short Bed
- Aluminum-reinforced composite bed construction
- 120V/400W 31 bed-mounted AC power outlet and LED bed lights
- Power tailgate-release switch located in taillight, key fob and dash with knee-lift assit 36
- "1794 Edition" stamped easy lower and lift tailgate with smart switch release 36
- LED center high-mount stop light (CHMSL) with integrated cargo lights
- LED Trailer Reverse Assist (TRA) light
- Gloss-black-painted A-pillar, except on Midnight Black Metallic and Blueprint
- i-FORCE MAX tailgate badge
- Chrome "1794 EDITION" door garnish, side molding, door handles, window molding and mirror caps; color-keyed tailgate spoiler; gray-painted overfenders
- "i-FORCE MAX" hood badge
- "4x4" tailgate badge

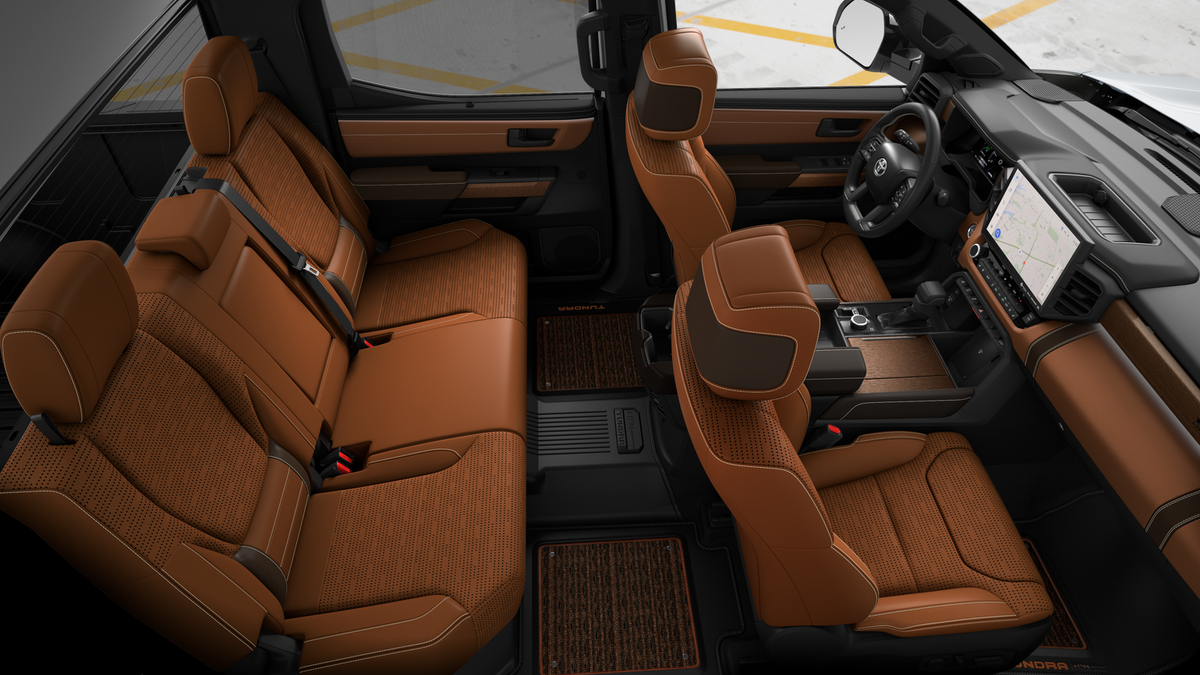

Interior
- Digital display auto-dimming rearview mirror with compass and HomeLink® 28 universal transceiver
- Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
- Power tilt/slide panoramic roof with power sunshade
- Power vertical rear window with defogger and privacy glass
- Acoustic laminated windshield
- Power windows with one-touch auto up/down and jam protection
- Rear-door sunshades
- Front and rear LED maplights
- Illuminated center console storage bin and glove box
- Instrument panel and door ambient lighting, illuminated driver and passenger footwells, and front- and rear-door LED pocket lights
- American walnut wood-grain interior trim with laser-etched "1794 EDITION" instrument panel badge
- Soft-touch instrument panel, center console and door surfaces
- Leather-wrapped shift knob
- Backup camera 29 with projected path
- Panoramic View Monitor (PVM) 2 with cameras
- Drive Mode Select (DMS) switch and dial
- Qi-compatible wireless smartphone charging 30
- Rear-seat air vents
- Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
- Front 12V 20 auxiliary power outlet
- 120V/400W 31 rear-seat AC power outlet
- Overhead console with rear window control, sunglasses storage and Safety Connect® 32
- Electronic locking fuel door
- Front and rear assist grips
- 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages
- Leather-trimmed seats with premium contrast stitching; 10-way power-adjustable driver and front passenger seats with 4-way power-adjustable lumbar support
- Driver's-seat memory function
- Multi-function massaging front seats
- Heated and ventilated front and rear seats
- 60/40 split, folding rear seat with center armrest and cup holders
- Dual zone automatic climate control with air filtration and individual temperature settings for driver and front passenger with S-Flow
- 1794 Edition all-weather floor mats 33
- Leather-wrapped power tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls
- Heated steering wheel
- 12-speaker JBL® 34 Premium Audio including subwoofer and amplifier
Mechanical
- Ignition System: Conventional 12V starter 20
- Fuel System: D-4ST direct-injection and port-injection fuel system
- Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
- Off-Road: Engine and body undercovers
- Valvetrain: 24-valve DOHC aluminum cylinder heads with Dual Variable Valve Timing with intelligence (VVT-i); 3445 c.c. aluminum engine block; 85.5 x 100 (mm.) bore x stroke; 10.4:1 compression ratio
- Exhaust System: Stainless steel exhaust system
- Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector 21
- Towing: Integrated Trailer Brake Controller (ITBC) 22with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls 21
- Towing: Trailer Backup Guide system with Straight Path Assist (SPA) 23
- Towing: Trailer-Sway Control (TSC) 24
- Engine: i-FORCE MAX 3.4L Twin-Turbo V6 Hybrid; 437 hp @ 5200 rpm; 583 lb.-ft. @ 2400 rpm
- HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
- HV Electric Motor: Electric motor power: 48 hp (36 kW)
- HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
- HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery 25 with 1.87 kWh capacity
- Transmission: 10-speed Electronically Controlled automatic Transmission with intelligence (ECT-i), sequential shift mode, and uphill/downhill shift logic
- Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low ranges) and Automatic Limited-Slip Differential (Auto LSD) 26
- Drive Modes: Eco, Normal and Sport driving modes
- Drive Modes: TOW/HAUL driving modes 21
- Body/Frame: Fully boxed high-strength steel ladder frame
- Body/Frame: Hydraulic cab mounts
- Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
- Body/Frame: Active aero front spoiler
- Body/Frame: Active grille shutters
- Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
- Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
- Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
- Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
- Brakes: Electric Parking Brake (EPB) 27
Safety
- Toyota Safety Sense™ 2.5 (TSS 2.5) 4 Pre-Collision System with Pedestrian Detection (PCS w/PD), 5 Full-Speed Range Dynamic Radar Cruise Control (DRCC), 6 Lane Departure Alert with Steering Assist (LDA w/SA), 7 Lane Tracing Assist (LTA), 8 Automatic High Beams (AHB), 9 Road Sign Assist (RSA) 10
- 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
- Blind Spot Monitor (BSM) 11 with Rear Cross-Traffic Alert (RCTA) 12 and Trailer Merge Warning
- Front and Rear Parking Assist with Automatic Braking 13
- Eight total airbags, including driver and passenger side, knee and curtain airbags 14
- LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
- Child-protector rear door locks and power window lockout control
- Star Safety System™ — includes Vehicle Stability Control (VSC), 15 Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) 16 and Smart Stop Technology® (SST) 17
- Drive-Start Control (DSC)
- Hill Start Assist Control (HAC) 18
- Tire Pressure Monitor System (TPMS) 19
- Driver and front passenger headrests
